Question 1

My bucket is slightly wider than your maximum width?

Accepted Answer

We can custom size the grapple to fit your bucket. There will be a small charge for this service.

Question 2

Are hoses included with the grapples?

Accepted Answer

Hoses are included with the Contractor and Commercial Add A Grapple.

Question 3

What can the grapple pick-up?

Accepted Answer

Our grapples can pick-up any loose material. They are not designed to dig however.

Question 4

How wide do the grapples open?

Accepted Answer

Single & Double Add A Grapple opens approximately 35”. The Contractor Models open approximately 39”. The Commercial Model opens approximately 49". (The Add A Grapple models may vary slightly depending upon installation.) Please refer to our individual product pages for more info.

Question 5

What is the weight of the grapples?

Accepted Answer

Single Grapple = 142 lbs. Double Grapple = 220 lbs. Contractor Grapple = 387 lbs. Commercial Grapple = 413 lbs. Please refer to our individual Add A Grapple pages for more info.

Question 6

How do I know if the grapple will fit my bucket?

Accepted Answer

Each of our individual Add A Grapple product pages has a How Do I... , A Specification Sheet, and A Selector Guide to fit your bucket correctly. Or feel free to Call Us at (888)497-3224 with any other questions.

Question 7

What is the spacing of the rake tines?

Accepted Answer

Our spacing of tines is 6". This is wide enough to sift the dirt yet close enough to hold small material such as rocks.

Question 8

Are hoses included?

Accepted Answer

Hoses are included with most models or are available as an accessory.

Question 9

What will the Grapple Rakes pick up?

Accepted Answer

Our grapples can pick-up any loose material. They are not designed to dig however.

Question 10

How wide do the grapples open?

Accepted Answer

The grapple opening is probably the most important feature of a grapple. A wider opening means you can grab more material. We have openings from 50" to 73". Even large enough to handle large round bales. Please refer to our individual Grapple Rake product pages for more info.

Question 11

What are the weight of the Grapple Rakes?

Accepted Answer

We have several models to choose from. Weights range from as low as 367 lbs. for small tractors up to 1190 lbs. for large equipment. Remember to choose a grapple that weighs less than 50% of your lift capacity. Please refer to our individual Grapple Rake product pages for more info and quick reference guides at the bottom of each.

Question 12

Should I choose a single grapple or double grapple?

Accepted Answer

Generally speaking, a double grapple is preferred to clamp down on uneven loads. A single grapple may be preferred for picking up even material such as hay bales. Please refer to our individual Grapple Rake product pages for more info and quick reference guides at the bottom of each page or feel free to Call Us at (888)497-3224 with any other questions.

Question 13

How often should I sharpen the blade?

Accepted Answer

Never. The blades come with approximately 1/8” edge. The force from the 5” X 8” cylinder forces the blades thru the tree so the blade does not need to be sharp. Sharpening the blade will only thin the steel and increase the possibilities of chipping the blade.

Question 14

Will rocks hurt the blade?

Accepted Answer

The blades are made of T1 steel. Dirt and rocks generally do not harm the blades.

Question 15

I only have one set of auxiliary hydraulic outlets on my tractor/skid steer and the clipper with the rotating head requires two sets of outlets.

Accepted Answer

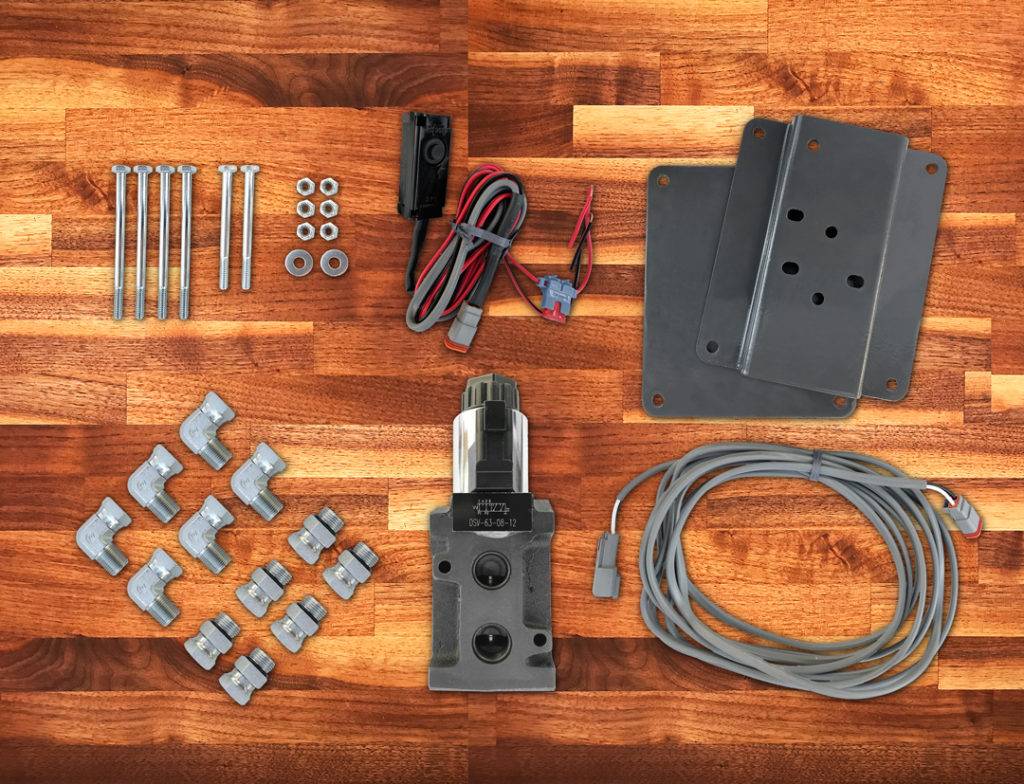

You will need to purchase a selector valve. This will turn your single outlet into a double outlet. The flow will be diverted either manually or electrically to either the cutting cylinder or the rotation cylinder. These valves can be purchased from Precision as an accessory item. See our Xtra Valve Kits click here for Contractor/Heavy Duty 24gpm or Utility/Compact Tractor 15gpm.

Question 16

How large is the cutting cylinder?

Accepted Answer

The cylinder is custom made for Precision Manufacturing INC. It is a 3,000 PSI, 5” X 8” cylinder with a 2” rod and 1¼” pins. At 2,000 PSI, the cylinder produces approximately 20 tons of push.

Question 17

How long have you been making the HyReach Clipper?

Accepted Answer

The clipper was first produced in 1992. Many improvements have been made since that time and we continually look for ways to improve our clipper.For more About Us -> CLICK HERE <-

Question 18

What kind of routine maintenance is required?

Accepted Answer

Just make sure all bolts and nuts are properly tightened before each use and that all grease zerks are greased. Other concerns feel free to Call Us at (888)497-3224.

Question 19

Can I pile brush with the HyReach Clipper?

Accepted Answer

The clipper is not designed for lifting. Doing so could permanently damage the clipper and/or accessories.

Question 20

What type of trees will the clipper cut?

Accepted Answer

We are yet to find a wood that the clipper will not cut – DEAD OR ALIVE!

Question 21

How large of a tree or limb will the clipper cut?

Accepted Answer

Between 9” and 12” with a single cut. The deeper the tree goes into the blade, the larger the cut.

Question 22

How close to the ground will the clipper cut?

Accepted Answer

There is a sled on the bottom of the clipper which is used for blade support. To cut at ground level or below, tilt cutter slightly forward and drop it to the ground in front of the tree. Next, slide clipper under the tree. The weight of the clipper will sink the clipper blades into the ground and allow you to cut at lower levels.

Question 23

What keeps tree from falling on operator?

Accepted Answer

Extreme caution must be taken. Though most cuts fall to the side, it is possible for a tree to fall backwards. To reduce the risk of trees falling backwards, trim limbs on the operator side of tree before cutting. Also, tilting the clipper forward before cutting helps fall tree away from operator.

Question 24

Will the clipper operate with all tractors and skid steers?

Accepted Answer

The clipper will operate with virtually all tractors and skid steers. The only requirement is to have minimum hydraulic pressure of 2,500 PSI.

Question 25

Can clipper be used with equipment other than skid steers and tractors?

Accepted Answer

Yes. The clipper has been mounted to back hoes, excavators, telehandlers and bucket trucks to name a few. If the equipment has hydraulics, a clipper can more than likely be adapted for use with that equipment.

Question 26

How high will clipper reach?

Accepted Answer

The HyReach clipper will cut 6’ beyond the end of your equipment. For example: If the loader reaches 12’ in the air. Add the 6’ reach which means your reach is 18’.

Question 27

How many trees will the clipper cut per hour?

Accepted Answer

There are too many variables to accurately answer this question since the cutting speed will vary depending upon the hydraulic pressure and flow. Generally, it takes slightly over 3 seconds to cut an 8” tree. Owners have reported cutting up to 300 trees per hour.
